3D scanner for detecting bin volume accuracy

The BinMaster 3DLevelScanner series is designed to provide continuous, non-contact level measurement and measures multiple points within the bin and can be used for tanks, silos, domes, warehouses, open bins and piles.
By BinMaster February 21, 2016

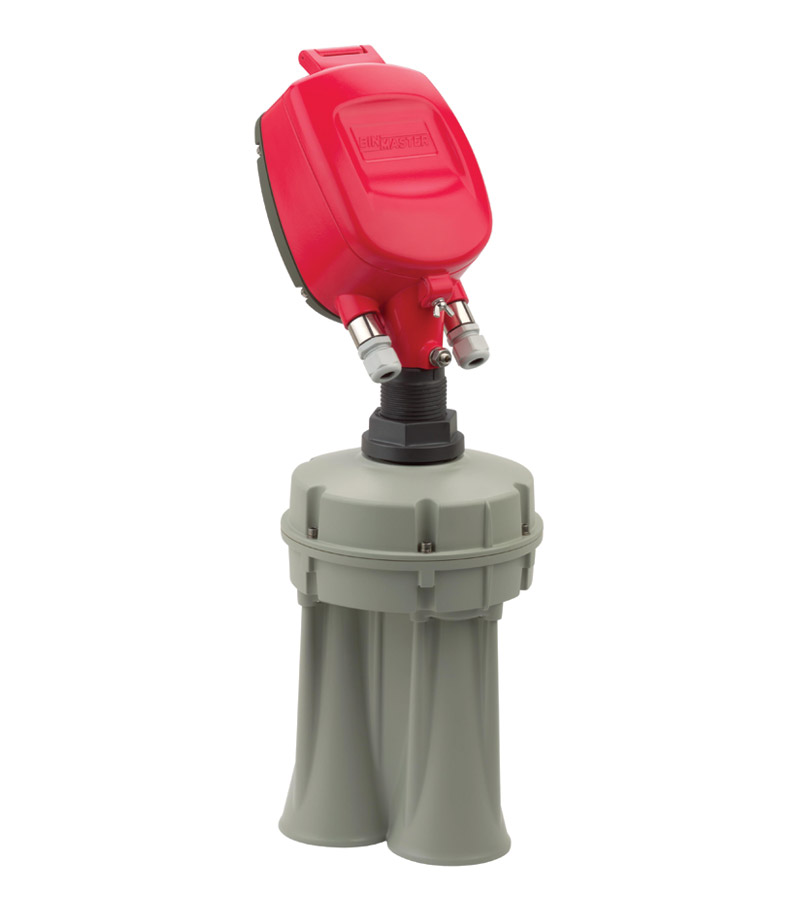

The BinMaster 3DLevelScanner series is designed to provide continuous, non-contact level measurement and measures multiple points within the bin and can be used for tanks, silos, domes, warehouses, open bins and piles. Courtesy: BinMasterThe BinMaster 3DLevelScanner series is designed to provide continuous, non-contact level measurement using dust penetrating technology to provide unsurpassed bin volume accuracy. It measures multiple points within the bin and can be used in a variety of industries that have tanks, silos, domes, warehouses, open bins and piles. Its 3D mapping capabilities provide a visual representation of bin contents, detecting irregular material surfaces, cone up or down conditions, as well as sidewall buildup. It is self-cleaning, requires minimal maintenance and features a variety of extensions and configurations to allow it to be used in a wide range of challenging applications.

There are different models of the 3DLevelScanner to address variations in silo size and volume accuracy. For very large bins, a multiple scanner system can provide a very high level of accuracy in dusty environments where the material surface is irregular. There are also scanners for high temperature applications and with a Teflon coating to prevent buildup of material on the sensor. For level applications, the RL acoustic level sensor is an option for non-contact level sensing in high dust.

MultiVision software is designed for operations that have multiple scanners for viewing all vessels in a single screen. Other options include mounting flanges, angled mounting adapters, and neck extensions for applications where the sensor must be extended below the structure.

BinMaster

www.binmaster.com

– Edited by CFE Media. See more Control Engineering process sensor and actuator products.
