Custom SMB adapter allows for axial shift

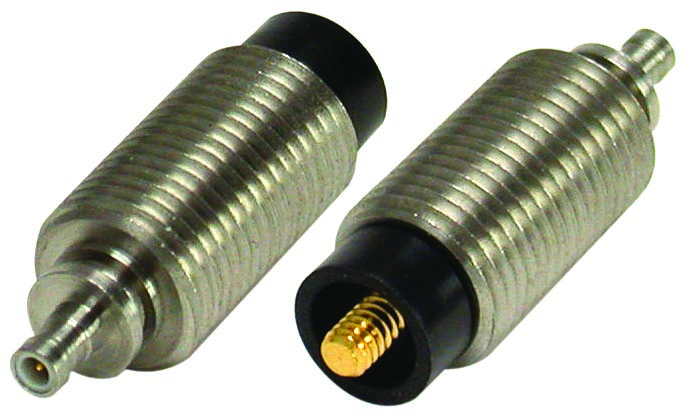

Aviel Electronics CO-SMB-JKMA-3P01 SMB jack adapter allows RF electrical connection to a non-standard unit, thereby permitting the use of standard off-the-shelf RF connectors.
Sometimes the most effective and economical design for a piece of equipment requires a custom adapter to function. Aviel Electronics recently designed such an SMB jack adapter. The CO-SMB-JKMA-3P01 is a panel-mount with a modified interface to allow external sealing and a .060 axial shift when mated with a standard off-the-shelf SMB plug. This special adapter allows RF electrical connection to a non-standard unit, thereby permitting the use of standard off-the-shelf RF connectors.
Most times when a standard connector cannot be used it is due to special mechanical or electrical requirements. A custom adapter offers the equipment designer allowances to produce the best device they can at a cost savings in the design approach and manufacture they have chosen. The custom adapter fills the customer’s special needs when a standard off-the-shelf connector or adapter is not available.
Aviel Electronics designs and manufactures custom RF connector and adapter solutions. Aviel Electronics is a division of RF Industries, a supplier of connecting solutions provided through its operating divisions: RF Connectors, RF Cable Assembly, Aviel Electronics, RF Neulink, RadioMobile, OddCables and RF Precision Products.
