Logger for multi-channel applications

Delphin Technology's Expert Logger 300 is designed to handle any multi-channel requirement and is equipped with 46 universal channels and the analog inputs have 24-bit resolution and sampling rates of up to 50 measurements per second.
By Delphin Technology January 5, 2016

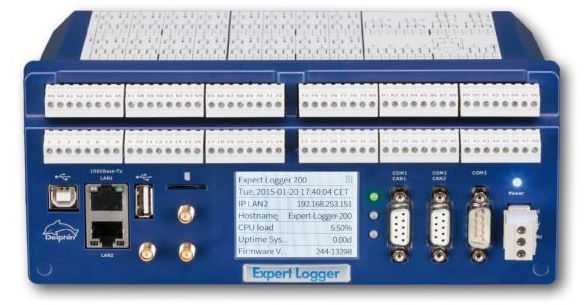

Delphin Technology's Expert Logger 300 is designed to handle any multi-channel requirement and is equipped with 46 universal channels and the analog inputs have 24-bit resolution and sampling rates of up to 50 measurements per second. Courtesy: Delphin TeDelphin Technology’s Expert Logger 300 is designed to handle any multi-channel requirement and is equipped with 46 universal channels. All inputs are differential and have galvanic isolation to protect them against interference from sensor circuits while also preventing earth loops. The analog inputs have 24-bit resolution and sampling rates of up to 50 measurements per second. The Expert Logger 300 is designed for applications such as multi-channel temperature measurement and monitoring, cleanroom monitoring for refrigerator units, independent acquiring measurement data from solar units and solar power generators, and industrial plant and machinery optimization. The universal inputs can be individually-configured for mVolt, mA, Pt100(0), resistance, thermocouple or DMS sensors. Resistances of up to 100 KOhm can be measured directly along with Pt100(0) sensors using both 4- and 3-wire technology.

Delphin Technology

www.delphin.com

– Edited by CFE Media. See more Control Engineering I/O system and module products.
