Ball screw linear slide and rod type heavy duty linear actuators

September 7, 2023

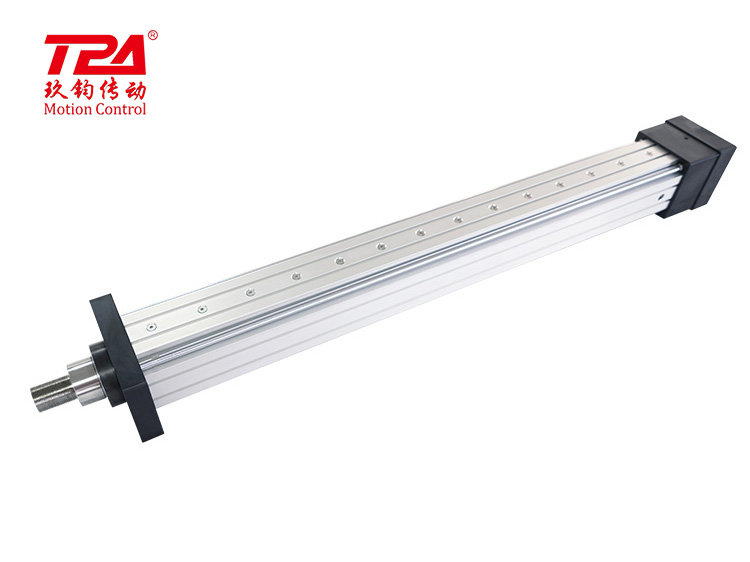

The EMR series electric actuator cylinder provides a thrust of up to 47600N and a stroke of 1600mm. It can also maintain the high precision of the servo motor and ball screw drive, and the repeat positioning accuracy can reach ±0.02mm. Engineers only need to set and modify PLC parameters to complete precise push rod motion control. With its unique structure, the EMR electric actuator can work in complex environments. Its high power density, high transmission efficiency and long service life provide customers with a more economical solution for linear motion of the push rod, and it is easy to maintain. Only regular grease lubrication is required, saving a lot of maintenance costs.

EMR series electric actuator cylinders can be flexibly matched with various installation configurations and connectors, and provide a variety of motor installation directions, which can be used for robotic arms, multi-axis motion platforms and various automation applications.

EMR series electric cylinder adopts roller screw drive inside, the structure of the planetary roller screw is similar to that of the ball screw, the difference is that the load transmission element of the planetary ball screw is a threaded ball instead of a ball, so there are many threads to support the load, thereby greatly improving the load capacity.
