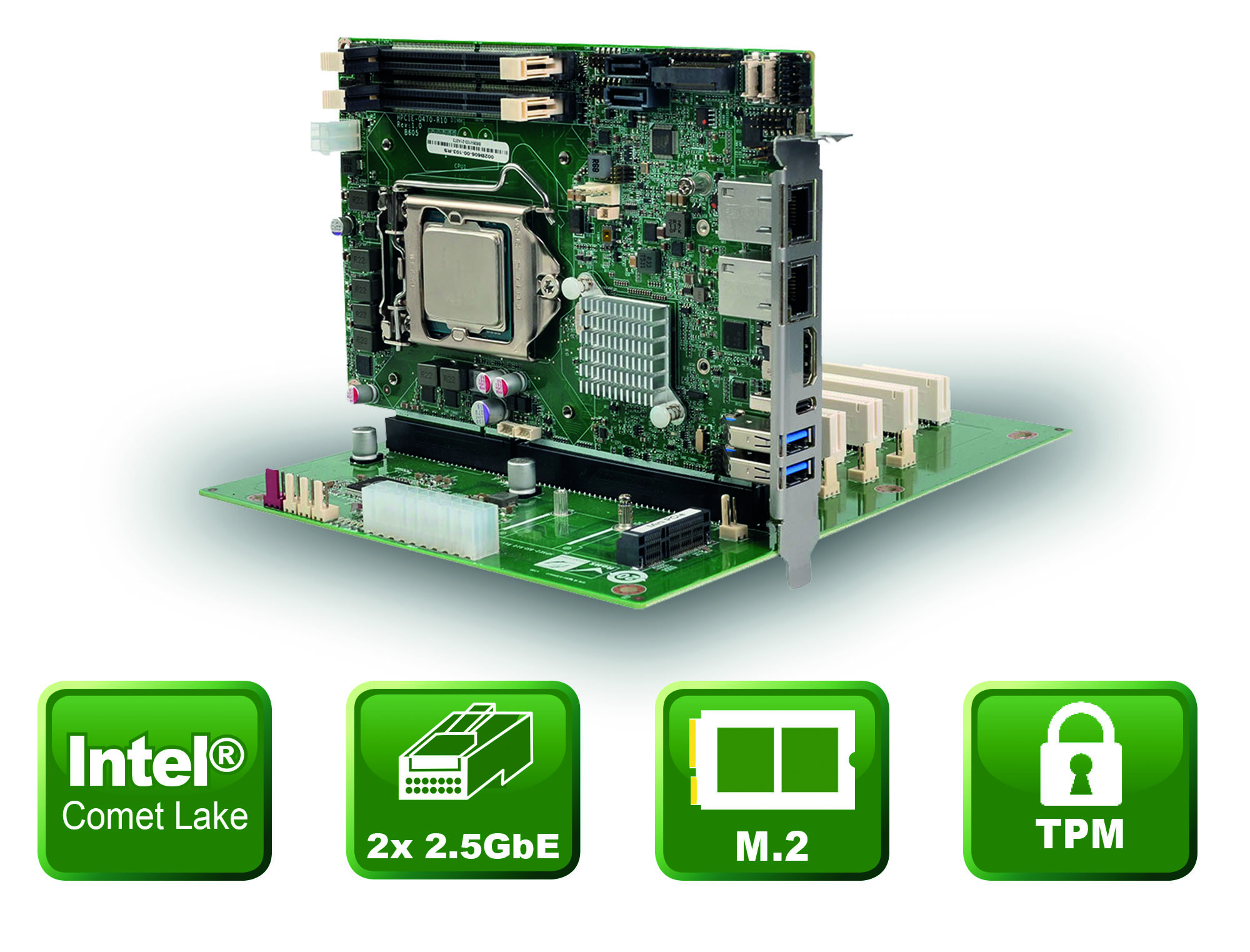

HPCIE-Q470 industrial PC

ICP Deutschland GmbH April 6, 2022

The HPCIE-Q470 supports all Core-ITM, Celeron or Pentium processors with up to 65 Watt Thermal Design Power. Thus, depending on the processor used, up to 10 CPU cores and 20 threads are available for multitasking applications. The HPCIE is also equipped with two DDR4 RAM sockets and can manage up to 64GB of RAM in dual-channel mode at up to 2933 MHz. The Intel UHD graphics unit offers a resolution of up to 4096×2160 pixels at 30 Hz on the HDMI 1.4 port. Two Intel I225V network ports provide network speeds of 2.5Gb. In addition, the HPCIE-Q470 offers two USB3.2 Gen1 (5Gb/s), one USB3.2 Gen2 (10Gb/s) with USB Type C connector, two USB2.0, two RS-232/422/485 serial ports, twelve digital EAs, SMBus, I²C, and an audio header for the Audio Kit expansion module. The PCI Express lanes on the HPCIE-Q470 allow for x16, x8+x8 or x8+x4+x4 operating modes, enabling the use of a variety of different backplanes. In addition, the PCIE-Q470 offers an M.2 2230 Type-A with PCIe Gen3 x2 and USB2.0 signal, as well as an M.2 2280/2242 Type-M PCIe Gen3 with x4 signal slot for NVME SSDs. The HPCIE-Q470 is equipped with Intel PTT TPM2.0 functionality and supports Windows 11 operating system among others.
