M series direct drive rotary tables

July 21, 2023

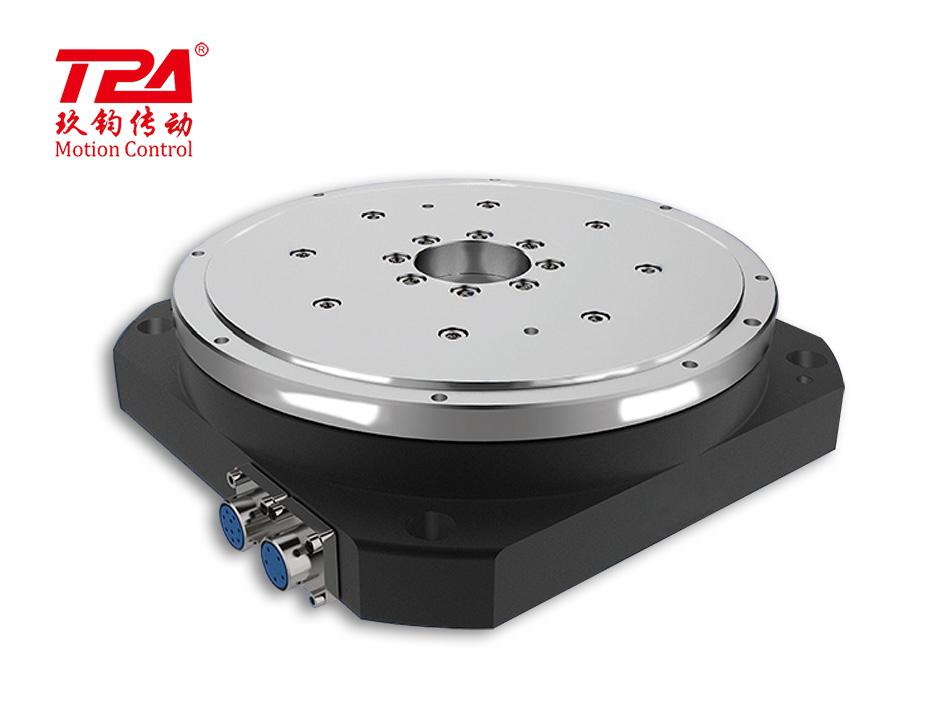

The direct drive rotary table mainly provides a high-torque, high-precision rotary motion stage in the automation field. Developed by TPA ROBOT, the rotary table has a maximum torque of 500N.m and a repeated positioning accuracy of ±1.2 arc sec. Built-in, high-resolution encoder design can achieve high-performance resolution, repeatability, a precise motion profile and can directly mount the turntable/load. The combination of threaded mounting holes and hollow through holes allows this motor to be used in a variety of applications that require direct connection of the load to the motor.

M Series direct drive rotary stage are commonly used in radars, scanners, rotary indexing tables, robotics, lathes, wafer handling, DVD processors, packaging, turret inspection stations, reversing conveyors, and general automation systems.

Features include:

  • Repeated Positioning Accuracy: ±1.2 arc sec

  • Max Torque: 500N·m

  • Max MOT: 0.21kg·m²

  • Max Speed: 100rmp

  • Max Load(axial): 4000N
