PROmesh P9 | 9-Port PROFINET and EtherNet/IP Managed Switch with Leakage Current Monitoring 114110190

September 1, 2021

Intelligent managed switch combining diagnostics and current monitoring

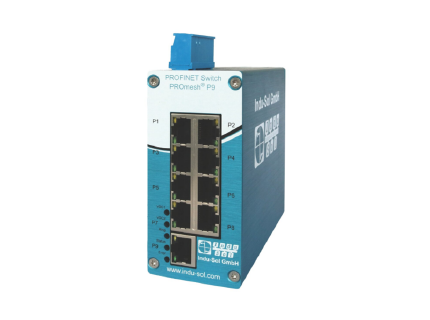

The Indu-Sol Ethernet/PROFINET Switch PROmesh P9 is equipped for the increased performance requirements in the industrial ethernet and conforms to Conformance Class B requirements. This functionality makes it possible to integrate the switch into the automation system (Step7, TIA Portal) by an engineering tool in order to make a comprehensive network diagnostics feasible.



With its optimized shielding contacts in the RJ45 jacks and leakage current monitoring, the PROmesh series not only meets the requirements for PROFINET functionality but also fulfills highest demands for EMC resistance in the industrial environment. That is why is can also be employed in areas with heavy electromagnetic loads.



In addition, many useful management functions such as IGMP snooping, VLAN, QoS, SNMP, bandwidth management and alerts via email or relay output can be used. The switch has 4 priority queues per port.
