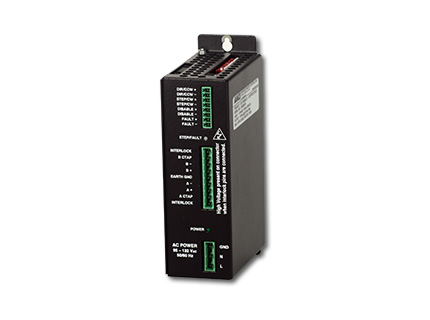

SD17060B stepper motor driver
The SD17060B is a compact and powerful 6.3 arms stepper motor driver that has several updates over its previous iteration (SD17060).
A narrower, more compact design retains the standard mounting pattern, but saves valuable panel space. Additionally, improvements to the drive yield a streamlined enclosure, eliminating the finned heat sink and permitting optional panel or side mounting for increased thermal transfer. Set-up and configuration have been simplified via onboard LED diagnostics that communicate specific fault conditions. And the enable/disable input can be user selected to perform either function, as well as being used to clear a fault.
Standard AMCI safeguards have been carried forward, including an interlock connection to prevent injury if the motor connector is removed while the driver is powered. Additional protections include short circuit protection – phase to phase and phase to ground- and overtemperature circuitry.
The SD17060B 6.3 Amp stepper motor driver will interface with AMCI’s complete line of high torque stepper motors, which range in frame size from NEMA 23 to NEMA 42. These motors have been tested and selected to perfectly match the electrical requirements of the SD17060B.
