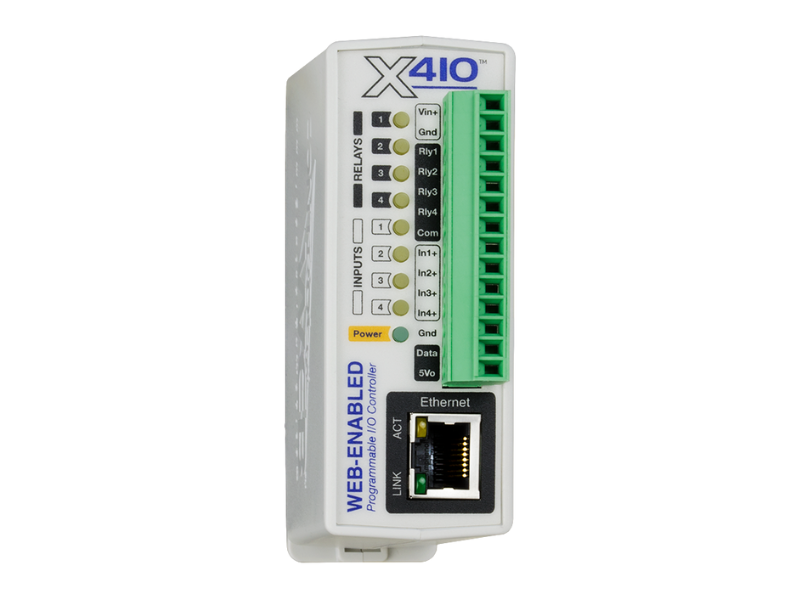

X-410 | Web-Enabled Programmable Controller

The X-410 is a multifunction web-enabled module for control and monitoring. The X-410 has 4 internal relays, 4 digital inputs, 4 pulse counters, 16 general-purpose timers, 16 general-purpose registers, and a 1-wire bus. The 1-Wire bus supports up to sixteen sensors for monitoring temperature, humidity, and more. It can be controlled and/or monitored over any TCP/IP network including private networks, IP-based industrial control networks, and the Internet. Users can operate the X-410 using a web browser, the CBW Mobile app, or custom applications written for a computer, PLC, or other automation controller.

No-Code Logic Programming

The X-410’s built-in interface allows you to create custom “tasks” for simple and advanced control logic without the use of ladder logic. Create tasks based on time, inputs or outputs‚ status, or the responsiveness of remote devices. The X-410 also has a built-in BASIC interpreter for custom applications not achievable through the Task Builder system.

Other features are also included such as email notification, event scheduling, and logging. The X-410 can control and monitor up to 32 remote devices, graph logged data, FTP logged data, email logged data, send encrypted emails, and monitor its power supply voltage.

For more information on this product visit New Products For Engineers.
