Camera for inspection and imaging applications

Teledyne Dalsa's Rad-icon 3030 CMOS X-Ray detector offer a combination of higher resolution and fast imaging and features 3096 x 3100 pixel resolution, an active area of 30.6 x 30.7 cm, and 99 micron pixel size.
By Teledyne Dalsa February 3, 2015

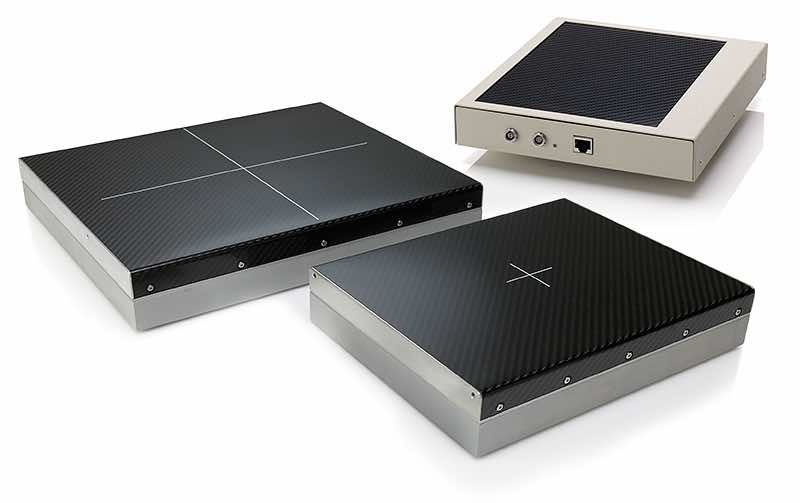

Teledyne Dalsa's Rad-icon 3030 CMOS X-Ray detector offer a combination of higher resolution and fast imaging and features 3096 x 3100 pixel resolution, an active area of 30.6 x 30.7 cm, and 99 micron pixel size. Courtesy: Teledyne DalsaTeledyne Dalsa’s Rad-icon 3030 CMOS X-Ray detector offer a combination of higher resolution and fast imaging suitable for industrial x-ray inspection, scientific imaging, and non-destructive testing. Other applications include weld inspection, wire bond and printed circuit board (PCB) inspection, microfocus, computed tomography (CT) and other demanding industrial imaging applications. The Rad-icon 3030 detector features 3096 x 3100 pixel resolution, an active area of 30.6 x 30.7 cm, and 99 micron pixel size. Rad-icon detectors deliver real-time frame rates of up to 30 fps, high sensitivity, and superb resolution in a large area device that is fully integrated and available with a fast, reliable gigabit Ethernet or camera link interface. Rad-icon digital x-ray cameras leverage Teledyne Dalsa’s CMOS image sensing technology, which is designed to enable the delivery of higher image quality. Other features include 5 lp/mm resolution, an energy range from 10 to 225 kVm, 14-bit digitization of images, and SDKs, drivers, and programming support.

Teledyne Dalsa

www.teledynedalsa.com

– Edited by CFE Media. See more Control Engineering discrete sensor and vision products.
