Faster path planning for rubble-roving robots

An algorithm has been developed to speed up path planning for robots designed to traverse treacherous terrain such as disaster areas or construction sites.

By Dan Newman August 12, 2021

A new algorithm speeds up path planning for robots that use arm-like appendages to maintain balance on treacherous terrain such as disaster areas or construction sites, researchers at the University of Michigan have shown. The improved path planning algorithm found successful paths three times as often as standard algorithms, while needing much less processing time.

“In a collapsed building or on very rough terrain, a robot won’t always be able to balance itself and move forward with just its feet,” said Dmitry Berenson, an associate professor of electrical and computer engineering and core faculty in the Robotics Institute. “You need new algorithms to figure out where to put both feet and hands. You need to coordinate all these limbs together to maintain stability, and what that boils down to is a very difficult problem.”

The research enables robots to determine how difficult the terrain is before calculating a successful path forward, which might include bracing on the wall with one or two hands while taking the next step forward.

“First, we used machine learning to train the robot on the different ways it can place its hands and feet to maintain balance and make progress,” said Yu-Chi Lin, recent robotics PhD graduate and software engineer at Nuro, Inc. “Then, when placed in a new, complex environment, the robot can use what it learned to determine how traversable a path is, allowing it to find a path to the goal much faster.”

However, even when using this traversability estimate, it is still time-consuming to plan a long path using traditional planning algorithms.

“If we tried to find all the hand and foot locations over a long path, it would take a very long time,” Berenson said.

So, the team used a “divide-and-conquer” approach, splitting a path into tough-to-traverse sections, where they can apply their learning-based method, and easier-to-traverse sections, where a simpler path planning method works better.

“That sounds simple, but it’s really hard to know how to split up that problem correctly, and which planning method to use for each segment,” Lin said.

To do this, they need a geometric model of the entire environment. This could be achieved in practice with a flying drone that scouts ahead of the robot.

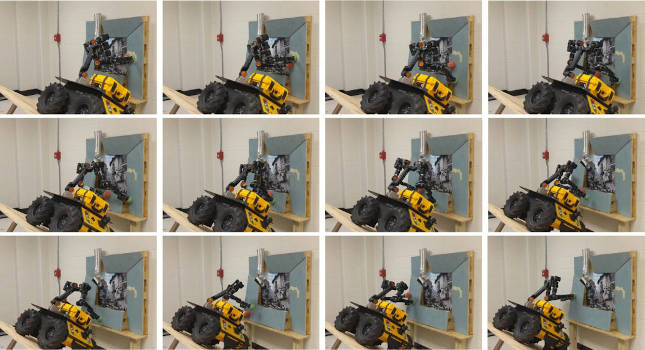

A two-arm mobile manipulator, which would fall if it did not brace itself on the wall, rolls across the steep incline by using the team’s approach to identify placements for its arms. Courtesy: Yu-Chi Lin, University of Michigan[/caption]

In future work, the team hopes to incorporate dynamically-stable motion, similar to the natural movement of humans and animals, which would free the robot from having to be constantly in balance, and could improve its speed of movement.

– Edited by Chris Vavra, web content manager, Control Engineering, CFE Media and Technology,

Author Bio: Dan Newman, University of Michigan
