How nanomaterials are improving battery design

Graphene coating enables new electrode designs with potential for electric vehicles

By Mark Heiden August 19, 2020

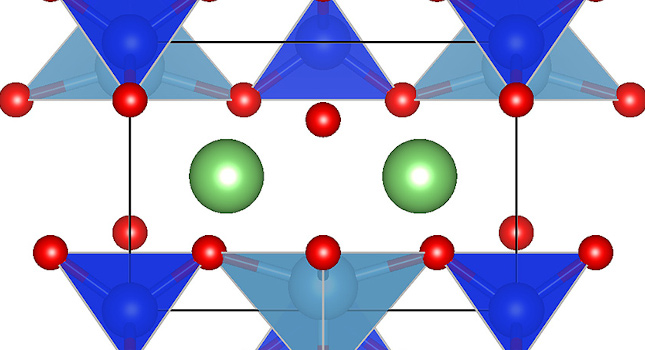

Researchers have developed new electrode designs for lithium-ion (li-ion) batteries that use graphene-coated nanoparticles to optimize battery performance. Courtesy: Northwestern University

Researchers from Northwestern University, Clemson University and Sejong University in South Korea have developed new electrode designs for lithium-ion (li-ion) batteries that use graphene-coated nanoparticles to optimize battery performance. The research focused on the design of one type of electrode, the anode.

“Battery limitations have prevented electric vehicles from making progress in terms of size and range,” said Northwestern Engineering’s Mark C. Hersam, who led the research. “With these new electrode designs, we’ve been able to improve the energy storage of rechargeable batteries and increase the power they can deliver.”

Hersam is a Walter P. Murphy Professor of Materials Science and Engineering in the McCormick School of Engineering and an affiliated faculty member of the International Institute for Nanotechnology.

Lithium-ion (Li-Ion) batteries have been the most common type of rechargeable batteries for the past two decades. They are found in everything from handheld personal devices to electric vehicles (EVs). However, as engineers try to increase the size and range of EVs, two stumbling blocks have emerged: volumetric energy density, which is the amount of energy that a battery can store relative to its size, and rate capability, which is the amount of power that a battery can deliver.

Both of these parameters are controlled by the battery’s two electrodes: the anode (negative electrode), which stores lithium as the battery is charged, and the cathode (positive electrode), where the lithium returns when the battery is discharged.

For EVs to get larger and go farther, the electrodes must enable batteries to pack in more energy and deliver more power during periods of high demand. Hersam’s team focused on the materials used in the electrodes as an avenue for improving their capabilities.

Increasing battery power

Most anodes are made of graphite, and research has not yet identified a universally viable substitute. For devices that need low or moderate rates of power, such as an iPhone or a small electric vehicle, graphite anodes are generally reliable. But for applications that are much more demanding, graphite anodes can become vulnerable to internal short circuits – reducing battery performance and leading to major safety concerns.

Anode materials composed of Li2TiSiO5 (LTSO) have been previously explored as an alternative to graphite, but while the material performs well in some respects, it has poor energy density and electrical conductivity.

Hersam’s team solved this problem by coating nanoparticles of LTSO with graphene, thereby creating a new material they call G-LTSO. The graphene coating made it possible to preserve the advantages of the LTSO nanoparticles without the drawbacks.

Using this new material, the researchers developed a new anode that provides record-setting volumetric energy density and delivers improved performance at high rates of power – with excellent safety and reliability.

“Our research suggests that G-LTSO can be seamlessly employed as a next-generation anode for lithium-ion batteries for high volumetric energy and power density applications,” Hersam said.

Improving energy storage

A number of promising candidates have been identified for new cathode materials, with nickel-rich layered cathodes among the most successful. Typically, nanoparticles of the material are packed into a microparticle. Due to the large active surface area of the nanoparticles and their dense concentration within the microparticle, the resulting cathode has a high capacity for energy storage.

The challenge has been that cathodes also require inactive components, like the pathways that transport charge. These inactive components reduce the overall capacity of the cathode, but the cathode will not work without them.

Hersam and researchers from Northwestern and Sungkyunkwan University in South Korea added an ultrathin graphene coating that conformed closely to the microparticles.

The graphene coating made it possible to substantially reduce the amount of carbon used for the transmission pathways and other inactive components without compromising their function.

“These electrodes showed unprecedentedly high capacities for energy storage, while the graphene coating is likely to mitigate degradation of the pathways over time, which should result in an exceptional cycle life,” said Hersam.

Better batteries and new opportunities

If rechargeable batteries can achieve sufficient energy density and rate capability, then a wide range of new applications would become possible. For example, electric airplanes would be quieter and less harmful to the environment than the gas-fueled planes that fly today. However, li-ion batteries aren’t currently capable of carrying enough energy or providing the high rate of power that a plane requires to take off and stay aloft.

Improved battery performance would also enhance the viability of renewable energy sources. If the batteries used in solar or wind systems were capable of storing more energy or delivering power to more customers, the costs of those systems would come down.

Researchers believe advances in electrode design are a critical step forward.

“We see these as scalable solutions for electrode design,” Hersam said. “Going beyond electric vehicles, our materials could open new possibilities for rechargeable batteries to be used in large-scale applications such as grid-level energy storage.”
