Pneumatic valve and manifold series for tubing installation

AutomationDirect’s Nitra BVS-3 and BVS-4 series of valves and mainfolds feature push-to-connect air connections for tubing installation.
By AutomationDirect December 5, 2016

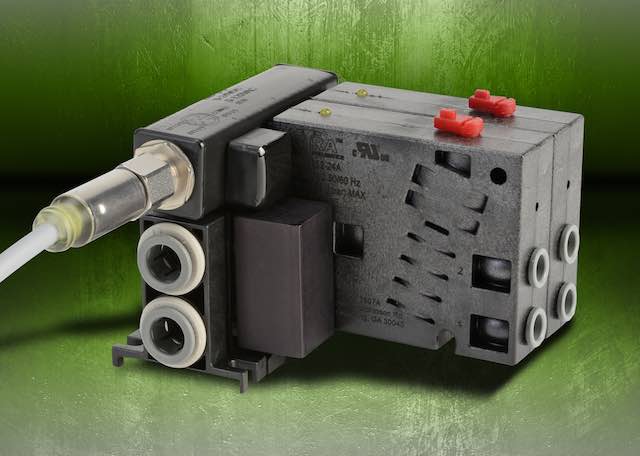

AutomationDirect’s Nitra BVS-3 and BVS-4 series of valves and mainfolds feature push-to-connect air connections for tubing installation. Courtesy: AutomationDirectAutomationDirect’s Nitra BVS-3 and BVS-4 series of valves and mainfolds feature push-to-connect air connections for tubing installation. The BVS-3 series modular solenoid valves are body ported 3-port (3-way) poppet valves available in 2-position, normally open or normally closed configurations with 12, 24, or 120Vac coils. Models are available with an 8 mm Micro DIN connector; most models have removable flying leads, allowing the valves to be used with BVM series manifolds. BVS-3 series valves are also offered in low current models and are available with 3, 5, 12, or 24Vdc coils. The BVS-4 series modular solenoid valves are two-position, single spring return, body ported 4-port (4-way) spool valve models. Designed with 1/4” push-to-connect ports and 12 and 24Vdc and 24 or 120VAC solenoid coils, these valves have removable flying leads or an 8 mm Micro Din connector.

AutomationDirect

www.automationdirect.com
