Rackmount box PC for power substation deployment

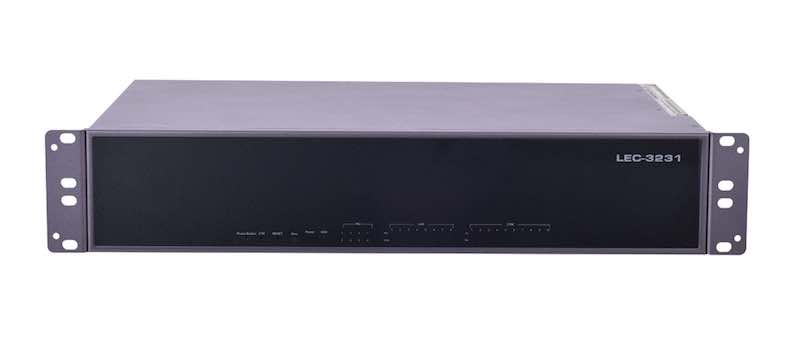

Lanner's LEC-3231 is an industrial-grade, rackmount box PC designed for power substation deployment and is configured with multiple I/O ports with isolated protection to fulfill industrial control system requirements.
By Lanner Electronics Inc. July 9, 2016

Lanner's LEC-3231 is an industrial-grade, rackmount box PC designed for power substation deployment and is configured with multiple I/O ports with isolated protection to fulfill industrial control system requirements. Courtesy: Lanner ElectronicsLanner’s LEC-3231 is an industrial-grade, rackmount box PC designed for power substation deployment. The rugged, fanless box PC is driven by processor choices of Intel Celeron 847E, Core i3-3217UE or Core i7-3517UE, depending on the SKU selected. The LEC-3231 is configured with multiple I/O ports with isolated protection to fulfill industrial control system requirements. The fanless box PC comes with two DB-9 and one 2x2x5 terminal block to provide RS-232/422/485 functionalities for connections with other industrial equipments. The serial I/Os are coated with 15KV ESD Protection. The LEC-3231 supports up to eight magnetic isolated LAN ports and is compliant with IEC 61850-3 and IEEE 1613 standards. For stable power supplies, LEC-3231. the box PC supports redundant power supplies and has an operating temperature from -40 to 70 C.

Lanner Electronics Inc.

www.lannerinc.com
