Supersonic jet injector accelerates nanoscale additive manufacturing

Georgia Tech researchers are using a supersonic jet injector to accelerate nanoscale additive manufacturing used for applications such as electronic circuitry and superconducting materials.
By John Toon July 19, 2019
Courtesy: Matthew R. Henry, Georgia Tech University

By energizing precursor molecules using a tiny, high-energy supersonic jet of inert gas, researchers have dramatically accelerated the fabrication of nanometer scale structures. The rapid additive manufacturing technique also allows them to produce structures with high aspect ratios. Now, a theory developed to describe the technique could lead to new applications for additive nanomanufacturing and new nanoscale materials.

The ability to rapidly produce small, 3-D structures could open up a range of new applications.

“If you can adapt additive direct-write techniques, this could bring a lot of unique capabilities for magnetic memory, superconducting materials, quantum devices, 3-D electronic circuitry, and many more things,” said Andrei Fedorov, a professor in the George W. Woodruff School of Mechanical Engineering at the Georgia Institute of Technology. “These structures are currently very hard to make using conventional methods.”

Beyond using the jets to accelerate deposition of precursor materials already on the substrate, the researchers have also created hybrid jets that contain high-energy inert gas and precursor gases, which allow not only dramatic acceleration of nanostructure growth but also precisely control the material composition during growth. In future work, the researchers plan to use these hybrid approaches to enable formation of nanostructures with phase and topology that cannot be achieved by any existing nanofabrication techniques.

Based on focused electron beam deposition, the technique allows structures to be fabricated from gas-phase precursors at rates approaching what could be expected in the liquid phase – all without raising the temperature of substrates. This could lead to manufacturing of the nanometer-scale structures at rates that could make them practical for use in magnetic memory, high-frequency antennas, quantum communication devices, spintronics and atomic-scale resonators.

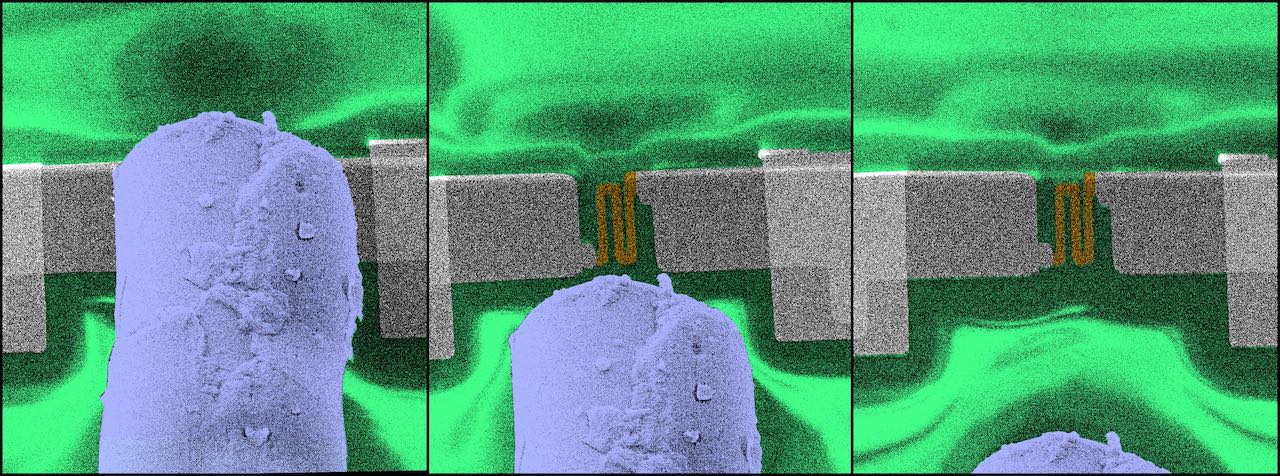

Colorized scanning electron microscope image shows the position of a resistive thermal device RTD (nanoscale thermometer) as the deposition substrate moves relative to the micro-size nozzle capillary for gas jet injection for mapping local temperature. The RTD thermal response was used for validation of the model prediction of the adatom non-equilibrium thermal state. Courtesy: Matthew R. Henry, Georgia Tech University

Colorized scanning electron microscope image shows the position of a resistive thermal device RTD (nanoscale thermometer) as the deposition substrate moves relative to the micro-size nozzle capillary for gas jet injection for mapping local temperature. The RTD thermal response was used for validation of the model prediction of the adatom non-equilibrium thermal state. Courtesy: Matthew R. Henry, Georgia Tech University

“We are controlling matter on the atomic scale to bring about new modes of additive manufacturing,” Fedorov said. “This new science could bring about additive manufacturing applications that might otherwise be impossible. The resulting new technology will open up new dimensions for additive manufacturing at the atomic scale.”

The work grew out of frustration with trying to create small structures using the electron beams, which can be just a few nm in diameter.

“When we went to the lab to use nanofabrication with focused electron beams, which are the size of a few nanometers, we could not grow structures that were just a few nanometers. They grew to be 50 or 100 nm,” Fedorov said. “And it also took a long time to produce the structures, which meant that, without improvements, we’d never be able to produce them at high volume.”

Fedorov and collaborators Matthew Henry and Songkil Kim realized the reactions producing the structures were slow, and tied to the thermodynamic state of the substrate on which they are being grown. They decided to add some energy to the process to speed things up – as much as a hundred times faster.

The result was the invention of a micro-capillary injector just a few micrometers in diameter that could introduce tiny jets of gaseous molecules into the deposition chamber to activate the precursors for the nanometer-scale structures. Partly because the jet is entering a vacuum chamber, the gas accelerates to supersonic speeds. Energy from the supersonic jet excites the precursor molecules that are adsorbed to the substrate.

Cross-section view shows molecular density of the supersonic gas jet as it expands in vacuum and impinges onto a substrate, leading to accelerated material deposition from an energized adsorbed precursor. Courtesy: Matthew R. Henry, Georgia Tech University

Cross-section view shows molecular density of the supersonic gas jet as it expands in vacuum and impinges onto a substrate, leading to accelerated material deposition from an energized adsorbed precursor. Courtesy: Matthew R. Henry, Georgia Tech University

“This energetic thermal state allows the electrons from the beam to much more easily break chemical bonds, and as a result, structures grow much faster,” Fedorov said. “All of this amplification, both the molecule transport and the rate of reaction, are exponential, meaning a small change can lead to a dramatic increase in outcome.”

That much has been observed experimentally, but to understand how to control the process and expand its applications, the researchers wanted to create a theory for what they were seeing. They used nano-scale thermometric techniques to measure the temperature of the adsorbed atoms – also known as adatoms – subjected to the jet, and used the information to help understand the basic physics at work.

“Once we have a model, it essentially becomes a design tool,” Fedorov said. “With this understanding and the capabilities we have demonstrated, we can expand them to other fields such as directed self-assembly, epitaxial growth and other areas. This could enable a whole host of new capabilities to use this kind of direct-write nanofabrication.”

Development of the model and understanding of the first-principles physics behind it could also allow other researchers to find new applications.

“With this, you can have almost the same order of magnitude growth rate as you’d have with liquid phase precursors, but still have access to the richness of possible precursors, the ability to manipulate alloying, and all the experience that has been developed over the years with gas phase deposition,” Fedorov said. “This technology will allow us to do things at a scale that is meaningful from a practical standpoint and cost-effective.”
