AutomationDirect's AEM2G series of compact limit switch line includes four electrical connection types as well as additional options for convenient limit switch installation.

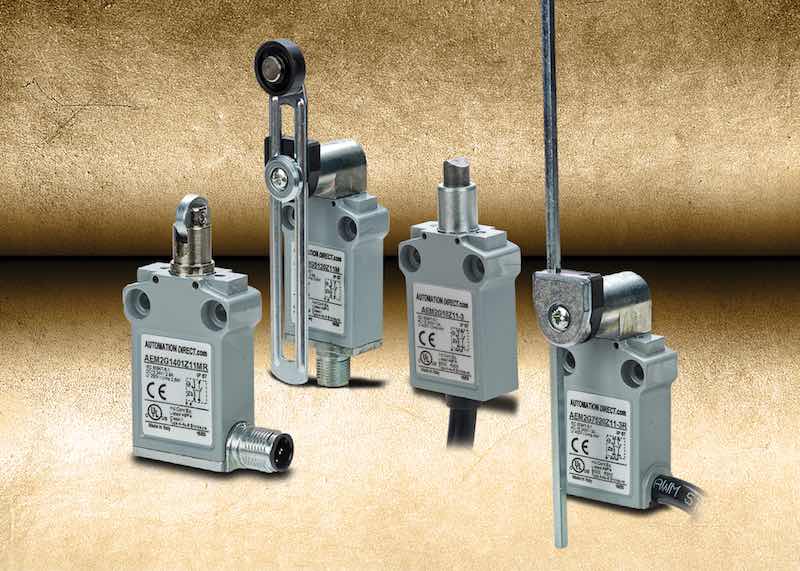

AutomationDirect’s AEM2G series of compact limit switch line includes four electrical connection types. They also include 5-Pin M12 quick disconnect (bottom and right exit) and 3m pre-wired pigtail cable (right exit) connection options as well as a 3m pre-wired pigtail cable (bottom exit) connection. The choice of connection types provides more convenient limit switch installation options. The AEM2G series compact limit switches have die cast metal housings that are epoxy resin filled for IP67 rating and are equipped with one normally-open and one normally-closed contact. These compact limit switches have a standard 25mm mounting hole spacing and are available in a variety of actuator types including metal plunger, lever, rod actuator, and spring actuator.
AutomationDirect
www.automationdirect.com
– Edited by CFE Media. See more Control Engineering energy and power products.
