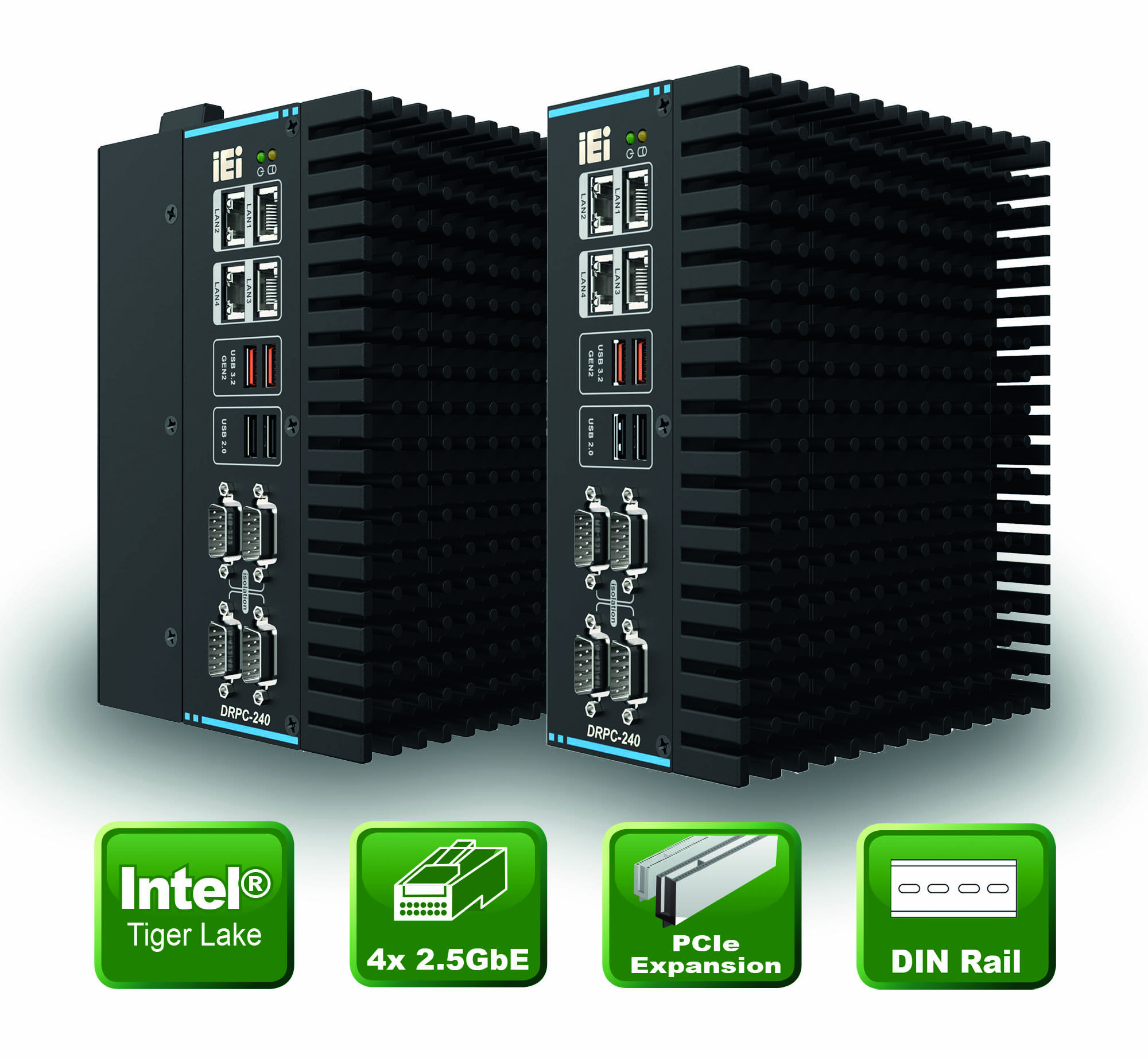

DRPC-240

With the new DRPC-240-TGL, ICP Germany offers a modular embedded system for DIN rail use. The standard model can be extended by a PCIe expansion box. This provides the user with a classic PCI Express x4 slot for add-on cards. Additional add-on cards can be operated on the M.2 3042/3052/3080 and the M.2 2230 slot. The DRPC-240-TGL is offered with Intel CeleronTM 6305, Intel Core-i5-1145G7E and Intel Core-i7-1185G7E processors. The DRPC-240 is equipped with 8GB RAM as standard and can be expanded to a maximum of 64GB on the two DDR4 SO-DMM slots. A 2.5″ SATA 6G drive bay is available for storage media. Furthermore the DRPC-240 offers one i225LM 2.5GbE, three i225V 2.5GbE with TSN/TCC functionality, two USB3.2 and USB2.0 each, as well as two RS-232 and RS-422/485 each with 2.5kV isolation, six digital inputs, six digital outputs, one HDMI with 3840×2160 resolution and one display port with 4096×2304 resolution. The system is designed for fanless use, and can be expanded with an external fan module if needed. The DRPC-240 can be supplied with an input voltage of 12V~24VDC via the three-pin terminal block. On customer request, ICP delivers the DRPC-240-TGL pre-assembled and with integrated operating system as a ready-to-use system. ICP. Industrial Computer Products …by people who care!

For more information on this product visit New Products For Engineers.
