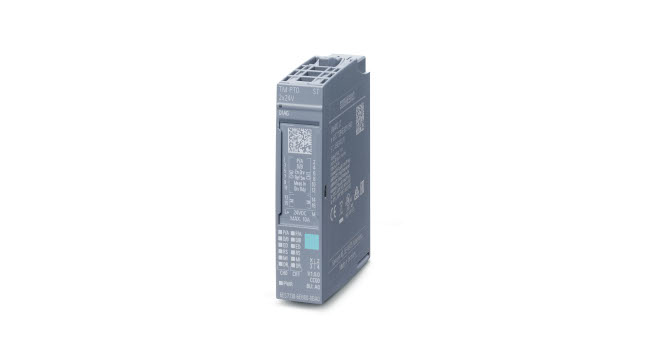

PTI 24VDC 2-channel module for stepper drives

Siemens Industry, Inc. November 11, 2021
analysis-date:2022-01-03; motivcenter-version:2.1.0; analysis-result:0; P1:0;P2:0;P3:0;P4:0;P5:0;P6:0;P7:0;P8:0;P9:0;P10:0;

Interface to drives with a PTI interface (Pulse Train Input). It is 24 VDC asymmetric up to a pulse frequency of 200 kHz is supported as a signal interface.  It is particularly suitable for control with an axis technology object of the SIMATIC S7-1500. The module is especially suited for control by technology objects for axes. The various signal types also make it possible to use it for incremental encoder emulation in order to specify a guide value or reproduce a line shaft electronically.
