Web-enabled instrumentation-grade data acquisition

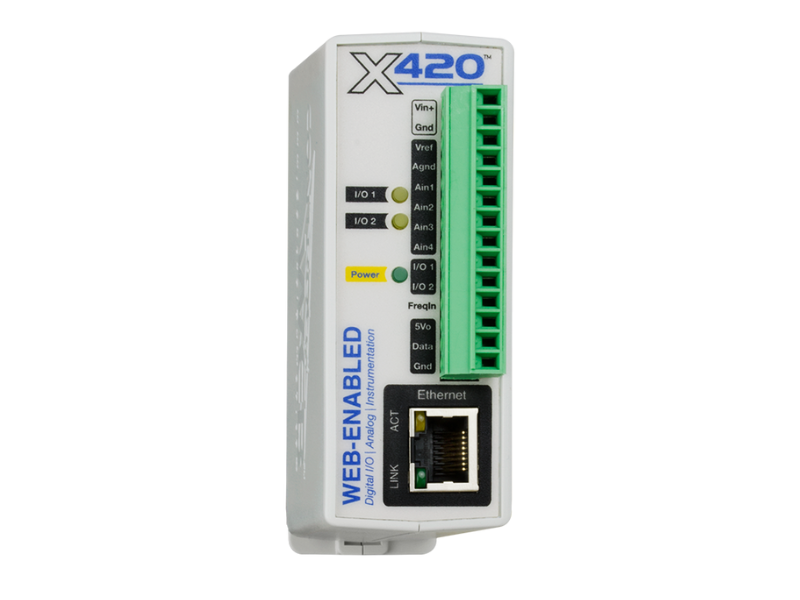

The X-420 has four multi-function analog inputs, two digital I/O with programmable pull resistors, two pulse counters, one frequency input, 16 general purpose timers, 16 general purpose registers and a one-Wire bus. The 1-Wire bus supports up to 16 sensors for monitoring temperature, humidity and more. It can be controlled and/or monitored over any TCP/IP network including private networks, IP-based industrial control networks and the Internet. Users can operate the X-420 using a web browser, the CBW Mobile app, or custom applications written for a computer, PLC or other automation controller.

Monitor & control up to 64 I/O with peer-to-peer communication

The X-420 supports peer-to-peer communication between ControlByWeb modules. It communicates with up to 32 modules and allows you to monitor and control up to 64 I/O points. The X-420 can communicate with all ControlByWeb devices but offers instantaneous messaging between 400 Series products, this means that the X-420 can monitor and control I/O on other 400 Series products as if it was directly connected to the module.

No-code logic task builder

The X-420’s built-in interface allows you to create custom “tasks” for simple and advanced control logic without using ladder logic.

Easily create tasks based on inputs or outputs’ status. Create up to three actions for each task providing you with the ultimate control and monitoring solution for your application!

Create up to 50 Scheduled, 50 Conditional, & 20 Override Schedules.

For more information on this product visit New Products For Engineers.
