Cable entry plates with panel feed-through solution

Phoenix Contact's CES Multigates are metal-reinforced cable entry plates designed to handle up to 37 cables and feature double-membrane sealing for IP66/67 protection.
By Phoenix Contact January 19, 2016

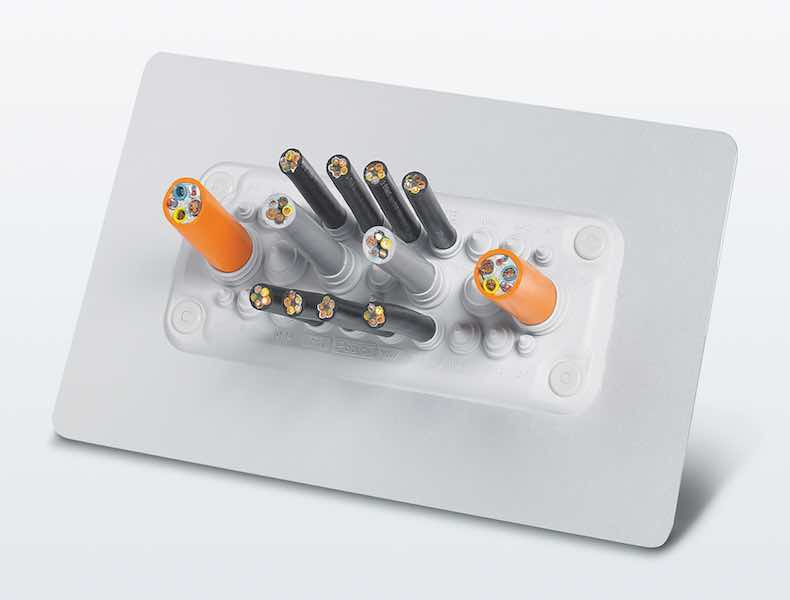

Phoenix Contact's CES Multigates are metal-reinforced cable entry plates designed to handle up to 37 cables and feature double-membrane sealing for IP66/67 protection. Courtesy: Phoenix ContactPhoenix Contact’s CES Multigates are metal-reinforced cable entry plates designed to handle up to 37 cables with an outside dimension of 5 to 60 mm. They also have double-membrane sealing for IP66/67 protection. The CES Multigates also feature a panel feed-through solution for applications where a panel-mounted connector is not preferred. Additional features include a UL 94 V0 flame rating and oil-resistance. The CES Multigates have an operating temperature range of -40 to 100 C and also feature stainless steel module mounting plates.

Phoenix Contact

www.phoenixcontact.com
