Rotary sensor boasts small size, enhanced functionality

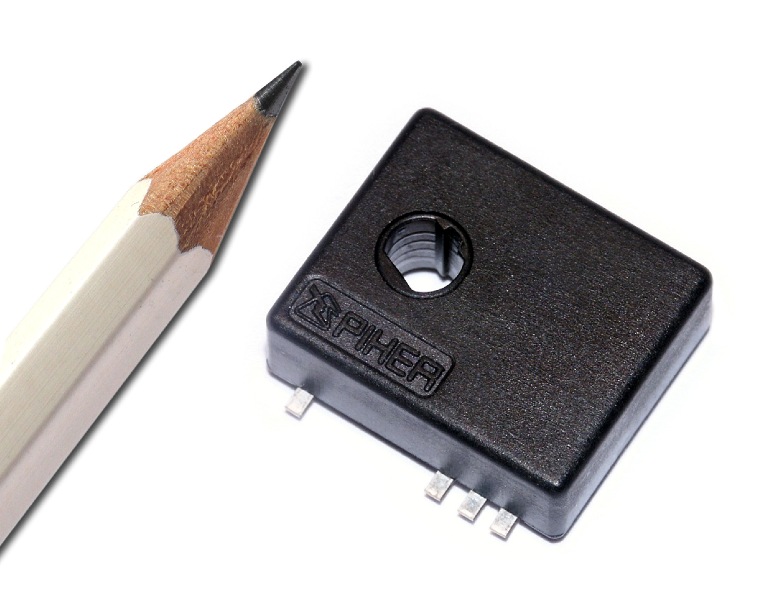

Piher International Corporation produces the non-contacting MTS 360 SMD Rotary Position Sensor. The MTS provides a true breakthrough in sensor technology by combining a through-shaft design with 360 degree absolute position feedback in an ultra miniature size. The result is reportedly the smallest fully featured rotary sensor on the market with reliability up to 25 million cycles.
With its tiny size of only 6mm x 17 mm x 18 mm (HxWxL), engineers can now integrate a fully featured rotary sensor directly on their PCB without the packaging issues that typically accompany encoders or other absolute position devices. The exceptionally low profile purportedly fits easily in places that were previously too small for pre-packaged rotary sensors.
The MTS 360 relies on patented Hall effect technology to enable for the first time, true non-contacting through-hole shaft sensing using standard SMD features. The offset through-hole accommodates the vacuum pick up tool, allowing use in automated SMD assembly systems. The standard model features a 4mm double D-flat shaft and an (8) pad SMD footprint that is compatible in most reflow soldering systems.
The new device offers electrical angles up to 360 degrees with no dead band and linearity as low as plus/minus 0.5 percent. Rated for use at negative 40 degrees Celsius to 150 degrees Celsius, the sensor can operate up to 300 RPM and can be programmed with full scale output with angles shorter than 360 degrees. Output is selectable between Analog, PWM 12 bits or Serial Protocol (SPI) at 14 bits and includes a second output channel to provide a programmable switch signal. A redundant version with a dual core sensor in the same package is also available.
This ultra-miniature MTS 360 Rotary Position Sensor is ideal in optical imaging stabilization and precision biomedical devices, optical zoom devices, consumer electronics, instrumentation, HVAC systems, automotive control systems, marine controls, fork lift trucks, farm equipment, cranes, low speed motor feedback, valve position sensors and robotic and automation feedback system.
Piher International Corporation
