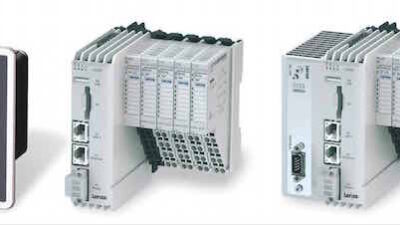

Machine & Embedded Control — PLCs: The Controller p300 combines logic and visualization in a compact device and is ideally suited to machine applications which only require a low processing power—designed for simple to medium complexity control and visual

EC: Controller p300

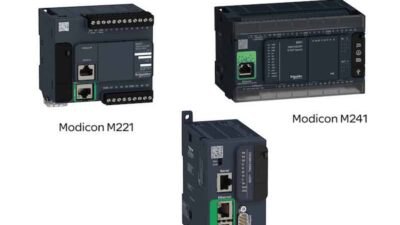

Machine & Embedded Control — PLCs: MachineStruxure is a comprehensive suite of compact logic-based controllers designed to reduce cost, optimize design time, and enable faster time to market. This is a Control Engineering 2015 Engineers’ Choice finalist.

EC: MachineStruxure controllers

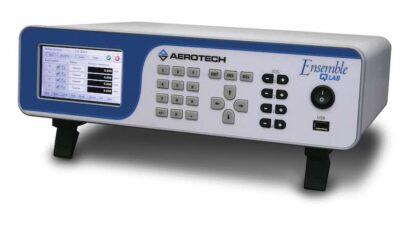

Motion Control: The Ensemble QLAB is a high-performance nanopositioning piezo stage controller for 1 to 4 axes of motion that allows user-configurable open-loop and closed-loop operation on a per axis basis. This is a Control Engineering 2015 Engineers’ C

Mechatronics and Motion Control

EC: Ensemble QLAB Piezo motion controller

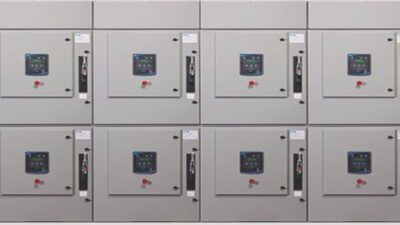

Motion Control: The Eaton Ampgard XP3 motor control center helps meet the challenges of today's demanding motor control environments by helping identify equipment fatigue and simplify preventative maintenance. This is a Control Engineering 2015 Engineers’

Mechatronics and Motion Control

EC: Ampgard XP3 MCC

Motion Control: The 17/1 gearhead is available with up to five gear stages, with standard reductions of 3.33:1 to 1,367:1. This is a Control Engineering 2015 Engineers’ Choice finalist. Courtesy: Faulhaber, Micromo

Mechatronics and Motion Control

EC: 17/1 series planetary gearhead

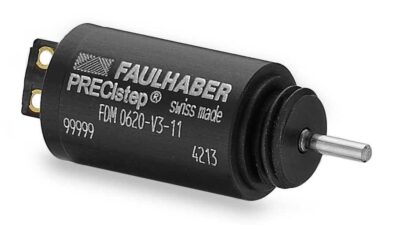

Motion Control: With a holding torque rating of 0.25 mNm and a dynamic torque of up to 0.2 mNm, these stepper motors are a great fit for applications requiring high power in a small space. This is a Control Engineering 2015 Engineers’ Choice finalist. Cou

Mechatronics and Motion Control

EC: FDM0620 stepper motor

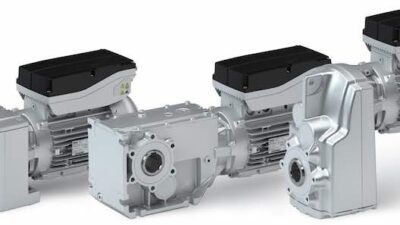

Motion Control: Developed to transform motor speed into torque intelligently and accurately, and designed for mechatronic integration with the Lenze Smart Motor, the g500 gearbox series enables efficiency of over 94% across an entire transmission range. T

Mechatronics and Motion Control

EC: g500 gearbox series

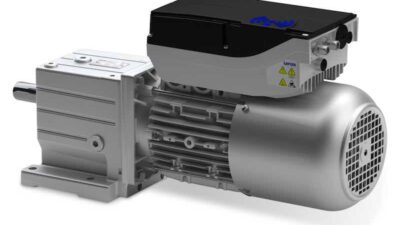

Motion Control: For optimal standardization, the simple and versatile smart motor is fully programmable from a smartphone and blends the simplicity of an ac motor with the technical benefits of an electronic drive control. This is a Control Engineering 20

Mechatronics and Motion Control

EC: Smart Motor

Motion Control — Drives: The Eaton PowerXL DG1 adjustable frequency drive is designed to help reduce energy consumption compared to traditional control methods, improve safety, and support reliable operations. This is a Control Engineering 2015 Engineers’

Mechatronics and Motion Control

EC: PowerXL DG1 adjustable frequency drive

Motion Control — Drives: The 3890 CR coreless dc motor ensures cogging-free, precise synchronization with very low energy consumption. This is a Control Engineering 2015 Engineers’ Choice finalist. Courtesy: Faulhaber, Micromo

Mechatronics and Motion Control

EC: 3890 CR dc motor

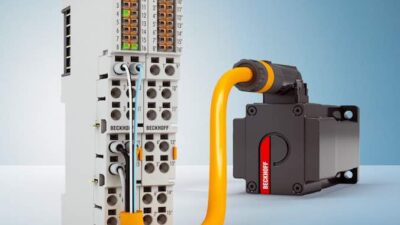

Motion Control — Servo Drives: The Beckhoff EL7211 servo terminal is a complete compact servo drive with an output current of up to 4.5 ARMS—integrated into a 24-mm wide EtherCAT terminal housing. This is a Control Engineering 2015 Engineers’ Choice final

Mechatronics and Motion Control

EC: EL7211 servo terminal

Motion Control — Servo Drives: Gold Twitter is a nano servo drive that provides over 4,000 W of qualitative intelligent power. This is a Control Engineering 2015 Engineers’ Choice finalist. Courtesy: Elmo Motion Control

Mechatronics and Motion Control

EC: Gold Twitter servo drive
