Most used Ethernet protocols

Table provides governing organizations and websites for the most-used Ethernet protocols among 200 respondents to the Control Engineering Mobility, Ethernet, and Wireless Study, November 2013. See also bar chart showing 16 protocols.

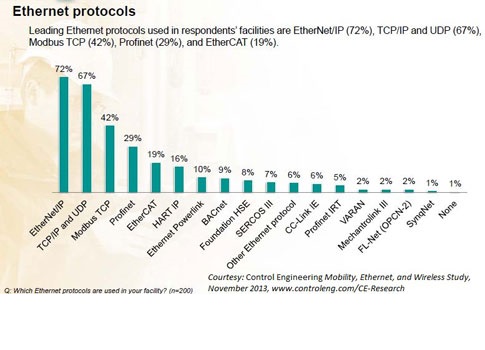

The 200 respondents of the Mobility, Ethernet, and Wireless Study, November 2013, said which Ethernet protocols they use. The leading responses were EtherNet/IP, TCP/IP and UDP, Modbus TCP, Profinet, and EtherCAT. Courtesy: Control Engineering

Table of the most used Ethernet protocols follow, according to the Control Engineering Ethernet Study, November 2013. See chart of 16 Ethernet protocols from the study. The leading responses were EtherNet/IP, TCP/IP and UDP, Modbus TCP, Profinet, and EtherCAT.

Protocols Governing organization More info
EtherNet/IP ODVA www.odva.org
TCP/IP and UDP Internet Engineering Task Force www.ietf.org
Modbus TCP Modbus-IDA www.modbus.org
Profinet PI North America www.us.profinet.com
EtherCAT EtherCAT Technology Group www.ethercat.org

For more Ethernet research findings and other Control Engineering research, see: www.controleng.com/ce-research.

– Mark T. Hoske, content manager, CFE Media, Control Engineering, [email protected].

ONLINE extra

Also see related article on Ethernet protocols below.
