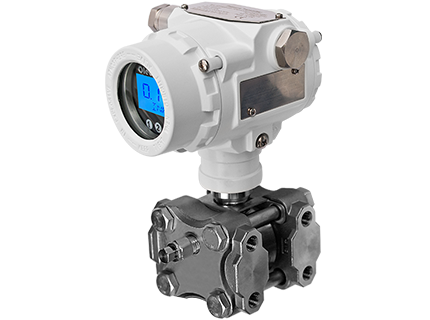

Smart Differential Pressure Transmitter

The Smart DP Transmitter provides multiple measurement ranges from -5 PSI (-138 inH2O) to 5 PSI (138 inH2O) through -1500 PSI (-41520 inH2O) to 1500 PSI (41520 inH2O) with a reference accuracy of ±0.075% of full span. It offers up to a 100:1 turndown ratio while all models support Primary Value (PV) reversal (high side / low side) except for the 1500 PSI option. For seamless integration, the DP Transmitter can be ordered with an output option of 1-5V, 4-20mA, 4-20mA/HART, or RS485 Modbus. All models carry the Explosion-Proof rating, while the 4-20 mA/HART model can be ordered with the optional Intrinsically Safe rating. The new DP Transmitter is provided with our signature highly visible backlit, 350° rotatable LCD screen. In addition, magnetically coupled integral pushbuttons are provided both internally and externally for ease of use. Configuring the transmitter is effortless with an easy-to-navigate menu system.

For more information on this product visit New Products For Engineers.
