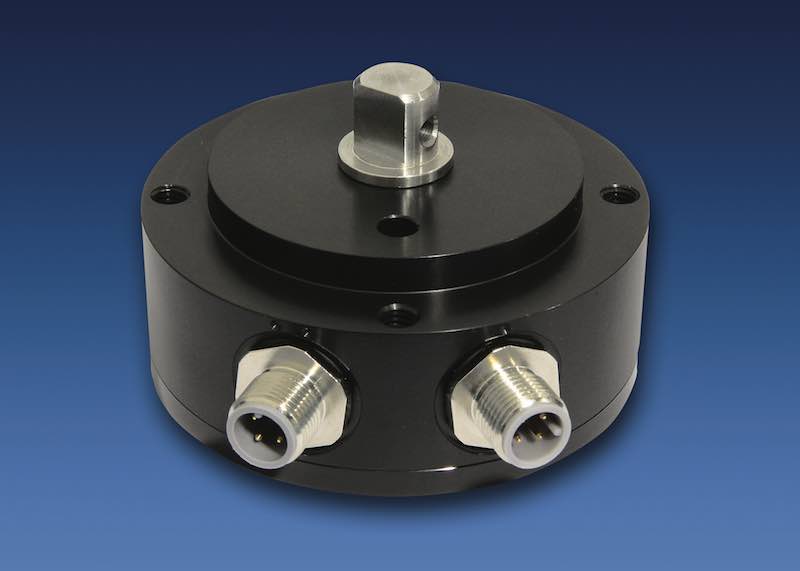

Novotechnik's RSX-7900 Series of angle sensors provide up to IP69K ingress protection and can be used in extreme conditions such as highway vehicle and construction equipment applications.
Novotechnik’s RSX-7900 Series of angle sensors provide up to IP69K ingress protection and can be used in extreme conditions. The sensors operate from 9 to 34 Vdc supply, making them ideal for 12 and 24 V off-highway vehicle and construction equipment applications. The sensor is available in six standard measuring ranges with angles from 0 to 60 to 0 to 360-deg with unrestricted rotation. Resolution is 12-bit across a 4 to 20 mA output with linearity to ±1%. The RSX-7900 sensors have single and dual redundant versions and are available with a CANopen interface. The RSX-7900 Series sensors also offer anodized aluminum housing with a stainless steel shaft for enhanced corrosion protection with salt and spray resistance.
Novotechnik U.S., Inc.
Position Sensor | Angle Sensor | Rotary Position Sensor
