Multi-purpose Modbus scanner

Precision Digital's Vantageview PD6730X Modbus Scanner is a rugged, NEMA 4X/IP65 Modbus master, slave, or snooper designed for accurate display of and quick access to information, locally or remotely, in wet or dirty environments.
By Precision Digital November 26, 2014

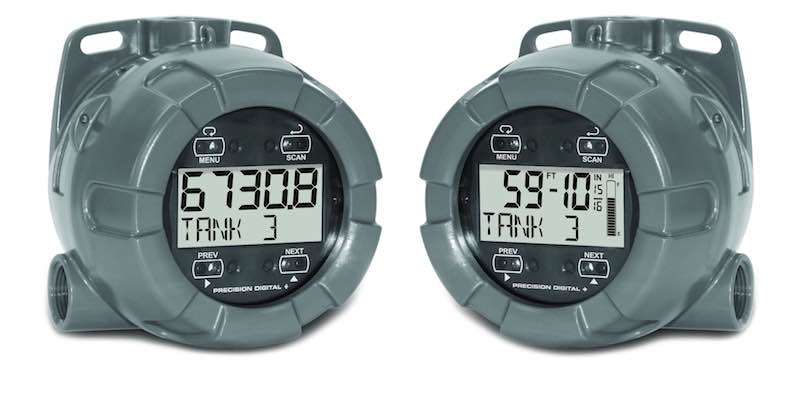

Precision Digital's Vantageview PD6730X Modbus Scanner is a rugged, NEMA 4X/IP65 Modbus master, slave, or snooper designed for accurate display of and quick access to information, locally or remotely, in wet or dirty environments. Courtesy: Precision DigiPrecision Digital’s Vantageview PD6730X Modbus Scanner is a rugged, NEMA 4X/IP65 Modbus master, slave, or snooper (sniffer). The PD6730X is designed for accurate display of and quick access to information, locally or remotely, in wet or dirty environments. It can accept up to 16 individually programmed process variables (PVs) from multiple devices; four math channels allow for calculations on multiple PVs. The SafeTouch through-window buttons allow operation without removing the cover. The pulse input accepts a wide range of flow transmitter signals, including mV input from a magnetic flowmeter, as well as high frequency signals.

The PD6730X includes backlighting, two open collector outputs, and an analog output as standard. Four sensors in the PD6730X are designed to operate as through-window buttons for programming and operation without removing the cover in wet or dirty areas. The PD6730X provides flexible power options, including battery, dc with battery backup, dc only, output-loop, or output loop with battery backup. Its element-resistant enclosure provides three threaded conduit holes and integrated pipe or wall mounting holes. Operating temperatures range from -40 to 75 C.

Precision Digital Corp.

www.predig.com

– Edited by CFE Media. See more Control Engineering networking products.
