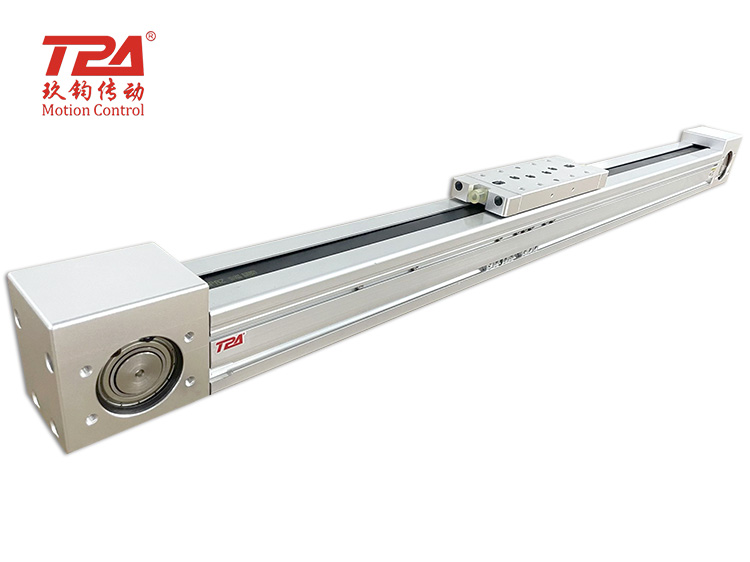

ONB series belt driven linear unit
RELATED PRODUCTS
PRODUCT INFORMATION
MANUFACTURED BY TPA Robot
RELEASE DATE
July 24, 2023
CATEGORY
Motors and Drives
TPA ONB series belt driven linear module adopts an integrated design combining servo motor and belt with semi-closed design, which converts the rotary motion of the servo motor into linear motion, precisely controls the speed, position, thrust of the slider and realizes high precision automatic control. The semi-closed belt-drives linear actuator and the belt width is large and the profile is open. To some extent, the belt is used instead of the cover plate to prevent foreign objects from entering the module.
Features include:
-
Repeated Positioning Accuracy: ±0.05mm
-
Max Payload(Horizontal): 230kg
-
Max Payload(Vertical): 90kg
-
Stroke: 150 - 5050mm
-
Max Speed: 2300mm/s
