EC: Daniel 3812 Liquid Ultrasonic Flow Meter

Process control – Flowmeters: Daniel 3812 Liquid Ultrasonic Flow Meter provides high-accuracy measurement for many noncustody transfer applications in the petrochemical, oil, water, and wastewater industries. This is a Control Engineering 2012 Engineers’ Choice award winner.

November 18, 2011

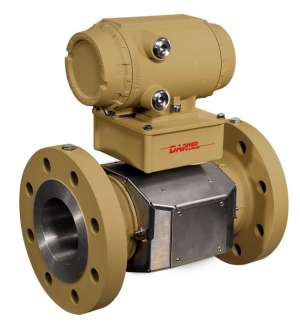

Emerson’s Daniel 3812 Liquid Ultrasonic Flow Meter with integrated diagnostics package addresses customer needs for not only improved accuracy and repeatability, but also the requirement for cost-efficient flow measurement in noncustody transfer applications. Designed for reliable measurement, minimal maintenance, and ease of operation, this meter is ideal for many applications in the petrochemical, oil, water, and wastewater industries.

Daniel 3812 is less sensitive to changes in the flow profile, solids, or entrained air, which results in accurate, stable, and reliable measurement. Operators don’t have to sacrifice accuracy for repeatability. This meter can be used to measure liquid products with a high accuracy of ± 0.3% and repeatability of ± 0.1% due to sophisticated algorithms and the configuration of its measuring ultrasonic paths.

Within the meter body are four nonwetted, intrinsically safe transducers that allow the meter to maintain high accuracy over widely varying flow conditions. These transducers are field replaceable without the need to empty or depressurize the meter, reducing maintenance costs and increasing uptime. The unobstructed ultrasonic flow tube inhibits material build-up. This combined with no internal moving parts to wear or drift provides for low-pressure drop, increased energy savings, and many years of maintenance-free service.

This full bore meter is easy to install and operate. Additional arrangements such as filters, flow strainers, supports, grounding, or isolation against vibrations are not necessary. The results are minimal maintenance and substantial savings in cost of ownership.

A predictive diagnostics package provides an intuitive view of meter health, which allows operators to access real-time process conditions and to address maintenance alarms before they lead to failure. The meter’s Ethernet compatibility enables multiple users to remotely monitor process information. The Smart Wireless THUM adapter allows wireless access to flowmeter diagnostics without the need for any additional wiring.

www.daniel.com

www2.emersonprocess.com/en-US/brands/daniel/Flow/ultrasonics/Pages/ultrasonic-3812.aspx

Emerson – Daniel Measurement and Control
